Manta Ø 550

Print Friendly, PDF & Email
Manta Ø 550

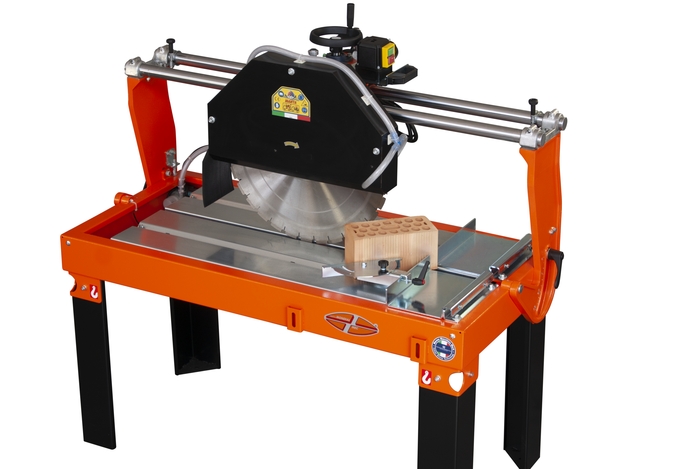

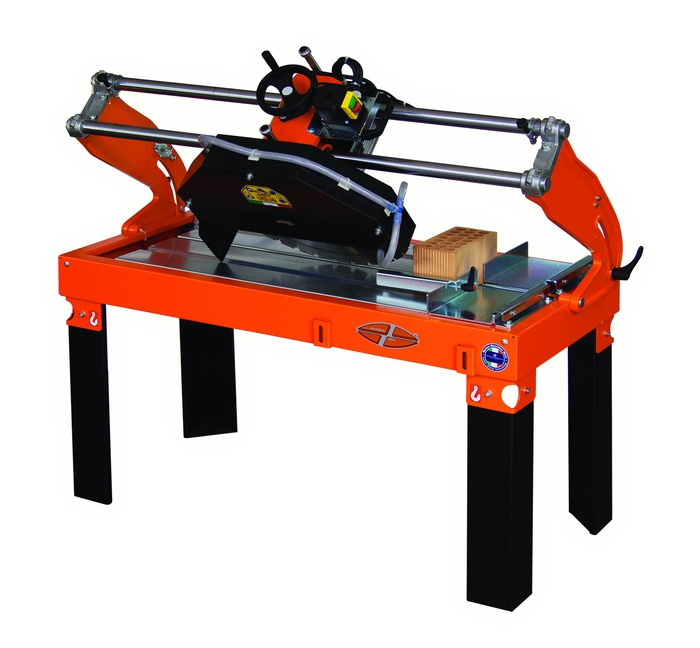

Rugged and inexpensive machine with an extremely accurate cutting. The head slides on two chromium-plated ground bars by means of linear ball-bearings. It is equipped with a submersible pump placed inside the base to collect the water cooling the blade. Vertical head motion by means of a handwheel for a fast and stable adjustment. Tilting head for 45° cuts.

Details



Accessories

Stop Set of servicing wrenches

Optionals

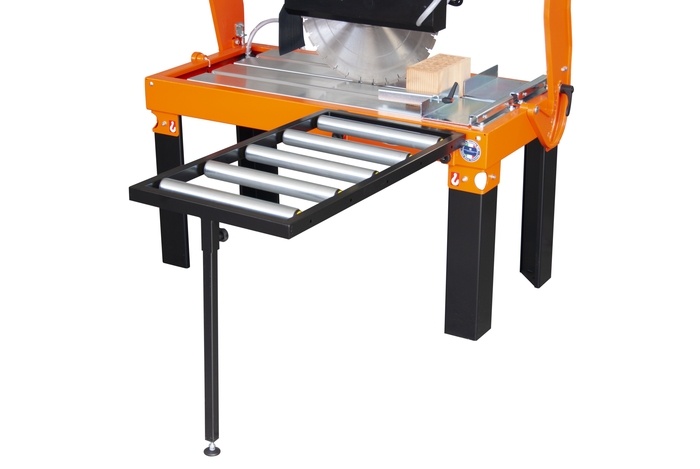

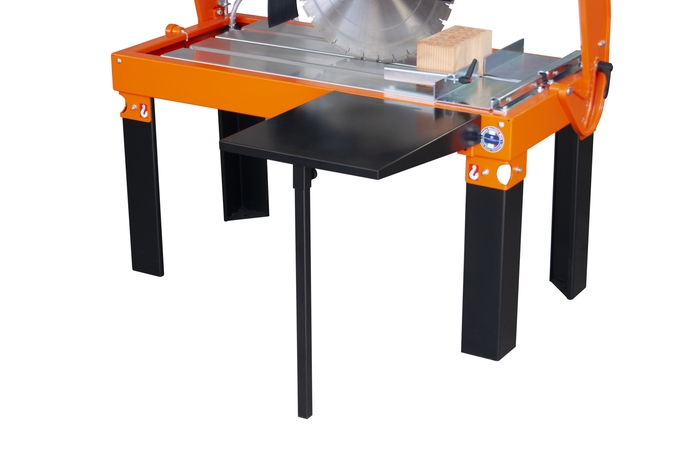

Diamond cutting blade Diagonal Square Side stop Side table Roller side table

Technical Data

ITEM MOD.
120204ED MANTA 85-550 monofase 550 - 30 1400 2,2 - 230 720 210 200 127x66x85 112
120205ED MANTA 85-550 trifase 550 - 30 1400 4 - 400 695 210 200 127x66x85 115
120156ED MANTA 100-550 monofase 550 - 30 1400 2,2 -230 920 210 200 140x66x85 125
120157ED MANTA 100-550 trifase 550 - 30 1400 4 - 400 895 210 200 140x66x85 128
120306ED MANTA 120-550 monofase 550 - 30 1400 2,2 - 230 1095 210 200 160x66x85 163
120307ED MANTA 120-550 trifase 550 - 30 1400 4 - 400 1095 210 200 160x66x85 166
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

Un anno di garanzia sui componenti !
