Manta E 100-120-130

Print Friendly, PDF & Email
Manta E 100-120-130

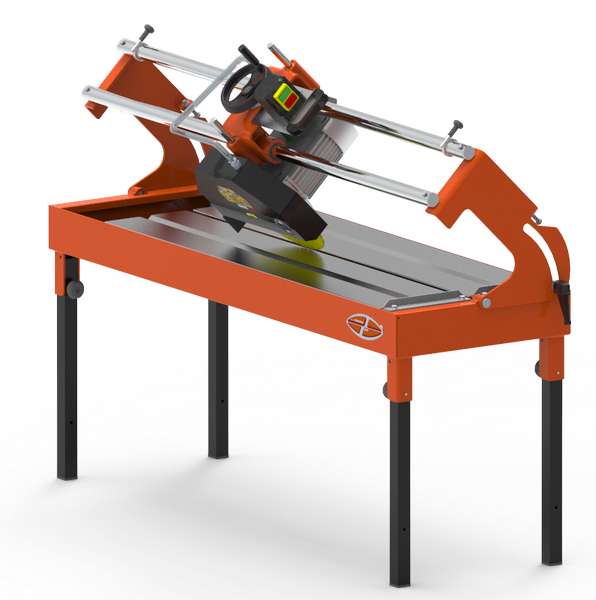

Rugged and inexpensive machine guaranteeing an extremely accurate cutting. Head slidin on two chromium-plated and ground bars by means of linear ball-bearings. It is equipped with a submersible pump placed inside the base to collect the water cooling the blade. Vertical head motion by means of a handwheel for a fast and stable adjustment. Tilting head for 45° cuts.

Details


Accessories
Stop Set of servicing wrenches

Optionals

Download
depliant manta 130 E.pdf

Technical Data
ITEM MOD.
120250 MANTA E 100 350 - 25,4 2800 2,2 - 230* 1000 130 110 140x61x70 105
120302 MANTA E 120 350 - 25,4 2800 2.2 - 230* 1200 130 110 160x61x70 115
120357 MANTA E 130 350 - 25,4 2800 2.2 - 230* 1300 130 110 171x61x70 125
* Voltage and power on request
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
